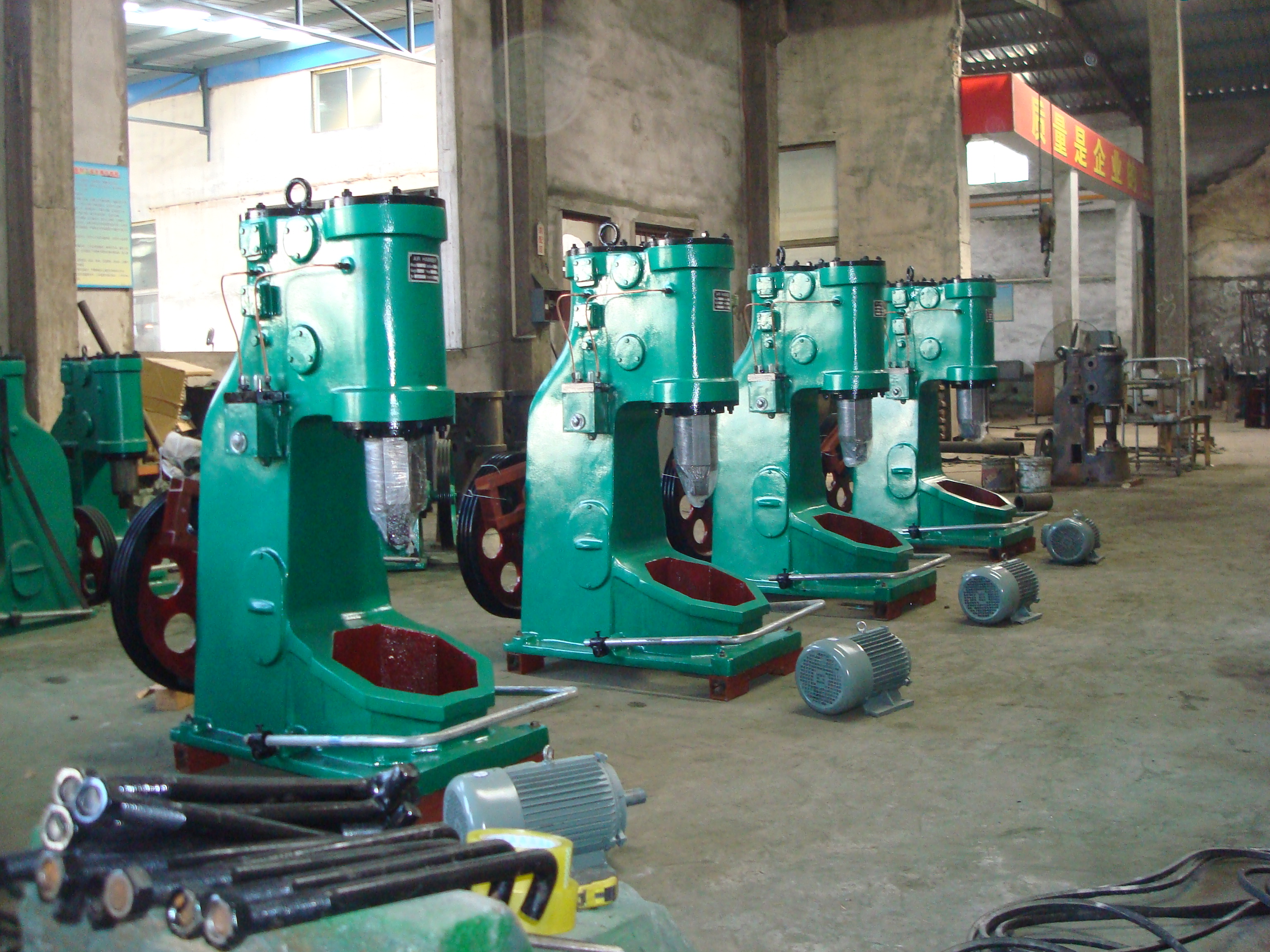

Product Name:Wrought iron forging machineC41-40KG(Separate)
Sort:Equipment for casting
Company:Tengzhou City Runfa Machinery Co.,Ltd
Location: China
Contact Person:Yifa Wang
Post Time:2012/2/28
Free Member
Tengzhou City Runfa Machinery Co.,Ltd
Tel:86-0632-5813836
Fax:+86-0632-5810836
Add:East of Luozhuang Village, Dondguo Town, Tengzhou City, Zaozhuang, Shandong, China
Post Code::277533
E-mail:runfa@tzrf.com
Detail Information
Item Unit Numerical Value
Weight of falling parts kg 16 20 25 40 75 150
Maximum blow energy J 180 220 270 530 900 2200
Distance from center of die to frame mm 150 180 200 235 300 350
Distance between top and bottom die mm 180 200 240 245 300 370
Number of blows per minute min-1 258 270 250 245 210 180
Dimension of top to bottom mm 70*30 90*50 100*50 120*50 145*65 200*87
Diameter of the working cylinder mm 115 150 165 200 235 330
Diameter of the compressing cylinder mm 125 155 170 205 240 340
Travel distance of malleus mm 210 200 275 290 345 370
Travel distance of plunger mm 120 130 140 154 200 235
Forges Round mm Φ22 Φ35 Φ45 Φ68 Φ85 Φ145
Square mm 20 30 40 52 65 130
Motor Power kw 1.5 2.0 2.2 4.5 7 15
Rotate speed rpm 1440 1440 1440 1440 1470
Outside Size Length mm 584 670 800 1080 1600 2080
Width mm 390 360 410 600 950 1240
High mm 952 1050 1213 1389 1950 2350
Anvil block weight kg 190 247 400 850 1800
Hammer weight kg ~220 ~500 ~720 ~1400 ~2800 ~5060
