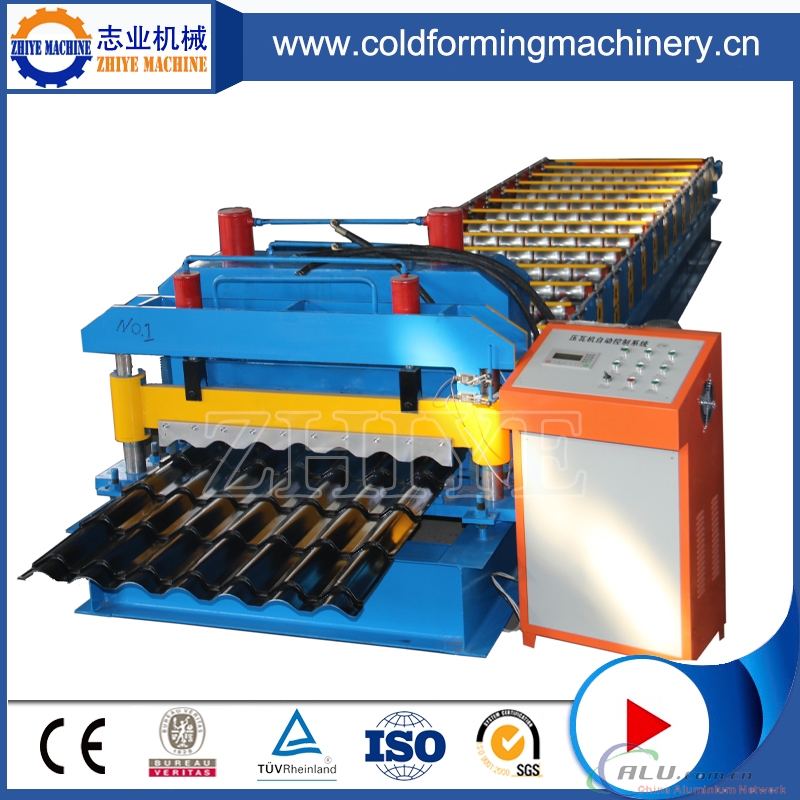

Glazed Roof Tile Metal Sheet Roll Forming Making Machine

It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, glazed tile roll forming machine, high precision counter and so on.

Function and feature

This producing line uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate. The products of it are used as the roof tile and wall panel outside of building, to increase the beauty and durability of the roof tile and wall panel. This line has no limit on processing length; you can set several different data on the computer control cabinet according to your own need. After pressing the button "Confirm", the machine can produce the panel automatically according to the set data. The molding plate surface smooth and not easy to be marked when it is being stamped. So it is easy to install. The product conforms to National Steel Construction Building Standard.

Features of this producing line:

lower cost

high efficiency

reliable working

low energy consumption

Technical parameters:

Material Spec: colored steel sheet,galvanized steel sheet

chargein width:1200mm

Thickness of coil sheet:0.4---0.8mm

Main motor power:4kw

Forming speed:8--10m/min

Hydraulic station power:3kw

Quantity of stands:about 12 groups

Hydraulic pressure:58mpa

Controlling system:PLC

Index error of length:10m±2mm

Total weight:about4,300kg

Voltage:380V3 phase 50Hz or at buyers requirement

Material of main equipment:

Roller material: high grade No.45 forged steel,plated hard chrome on the surface of roller with thickness 0.05mm

Active shaft material: high grade No.45 carbon wrought steel at diameter 70mm

Cutter blade:Cr12 mould steel with quenched treatment

Glazed tile stamping:Cr12 mould steel with quenched treatment,

Frequency converter

PLC:computer adopt PLC

Computer operating board adopt OP320A,China

Processing technique and deployment:

Uncoiler

Feeding platform

Molding core

Molding shearing mechanism

Hydraulic station

Computer control cabinet

Step-formed mechanism

Counter

Working flow:

Decoiling the sheet--sheet guiding---roll forming---measure length---glazed steel stamping--cutting ---the panel---panels to the supporter

Features of Roof Tile Product

The roofing tile products are formed by cold roll forming machine from high quality coated sheet, which performs the elegant style of traditional roof tile and suits for every architecture design. With light, strong strength and long lasting quality, it is convenient and takes short time for installation.
